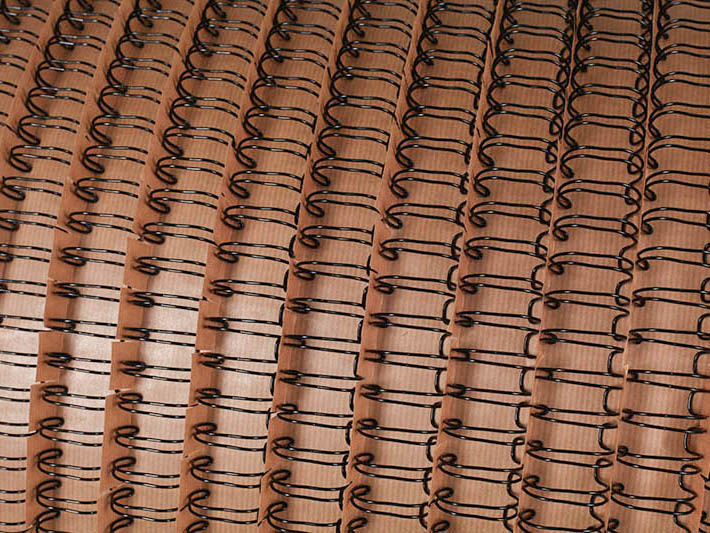

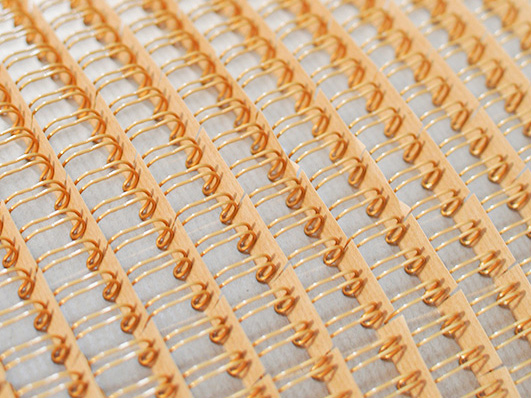

DOUBLE LOOP SPIRAL ON SPOOL
Spiral on spools is the right solution for both automatic machines and manual ones.
Our offer includes wide range of spirals. Sizes range from 3/16” to 1 ¼”:
Specification
| Spiral size [inches] | Spiral size [mm] | Spiral pitch [inches] | Max. binding thicnkess [mm] | No. of loops on the spool |
|---|---|---|---|---|
| 3/16” | 5 | 3:1 | 3,0 | 132 000 |
| 1/4” | 6 | 4,5 | 94 000 | |
| 5/16” | 8 | 6,0 | 66 000 | |
| 3/8” | 9,5 | 7,5 | 46 000 | |
| 7/16” | 11 | 9,0 | 34 000 | |
| 1/2” | 12,5 | 10,5 | 26 000 | |
| 9/16” | 14 | 12,0 | 21 000 | |
| 5/8” | 16 | 2:1 | 13,5 | 12 500 |
| 3/4” | 19 | 16,0 | 8 000 | |
| 7/8” | 22 | 19,0 | 6 000 | |
| 1” | 25 | 22,0 | 4 200 | |
| 1 1/4” | 32 | 29,0 | 2 600 |
Spirals avaliable in: black, silver, blue, red, yellow, green, gold and white.
Spiral pitch
Available colours
